Use Edit > Automatic Knife to automatically slice Complex Fill and Complex Turning embroidery objects into smaller turning stitch and single angle objects with automatic overlaps.
|
|
Use Edit > Automatic Knife to automatically slice Complex Fill and Complex Turning embroidery objects into smaller turning stitch and single angle objects with automatic overlaps. |

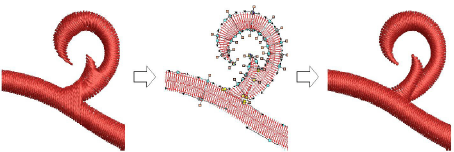

The Automatic Knife tool assists semi-automated digitizing of vector artwork. When objects have clean boundaries, EmbroideryStudio fragments them automatically and generates good quality stitching in most cases. It also operates on Complex Fill and Complex Turning embroidery objects.
1Select one or more suitable objects for cutting.
2Click the Automatic Knife icon.
EmbroideryStudio cuts the selected object automatically, discarding any unwanted fragments.
For each source object, EmbroideryStudio:
3Creates turning-stitch objects as well as single-angle objects where appropriate.
3Creates overlaps at junctions between objects.
3Branches adjoining objects.
