Sequence with the Color-Object List


Use Docker > Color-Object List to resequence objects.

The Color-Object List provides an easy way to select objects in designs and access their properties.

To sequence with the Color-Object List...

1Click the Color-Object List icon.




2Select the color block or object to resequence.

3To select a range of items, hold down Shift as you click.

3To select multiple items, hold down Ctrl as you click.

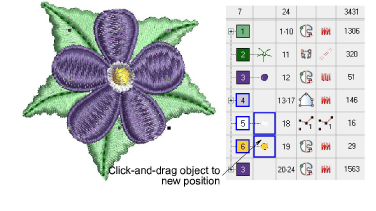

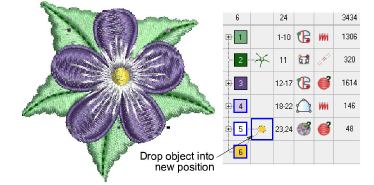

3Click-and-drag selected objects to reposition them.




Tip: You can also use the Color-Object List to group, lock, and hide objects.
