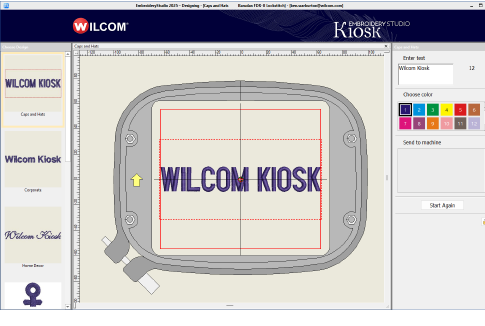

EmbroideryStudio provides a Kiosk capability for cap and other embroidery. The lettering kiosk is primarily intended for use at retail outlets where fast and simple personalization of standard design layouts is required in consultation with customers.
The lettering kiosk provides a set of predefined design layouts and the ability to easily personalize them by modifying text and color. You can create your own kiosk design layouts. The default location is here...
C:\Program Files\Wilcom\EmbroideryStudio 2025\Kiosk\\Designs
The default kiosk banner – dimensions 1200 x 100 pixels – is located at the same location...
C:\Program Files\Wilcom\EmbroideryStudio 2025\Kiosk\\
If you want to modify the banner in any way – e.g. with a specific location name – it is a simple matter to update or replace it. Alternatively, you can place your custom banner at a separate location on your hard disk or network and reference it there. If you have more than one kiosk set up, they can all reference the same banner.
