Adjust the grayscale image settings as preferred:
|
Setting |
Function |
|
Auto adjust |
Optimize image settings for automatic digitizing. |
|
Brightness |
Further differentiate stitched and unstitched areas. |
|
Contrast |
|
|
Grayscale threshold |
Use to further filter the number of gray tones in the image. |
|

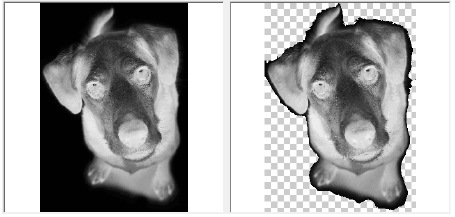

Invert colors |
Create an image negative. |
Note: The results of the Invert Colors setting depend on whether you are using an image with a solid or transparent background.
3Use the Reset button to return to default values. Use the Undo and Redo buttons to back-step through previous adjustments.
3Optionally, select a thread color from the droplist.

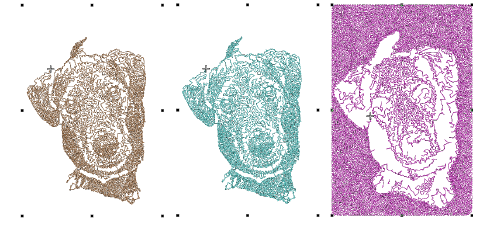

3Again, use Preview to generate temporary stitching without closing the dialog.
3Further refine image settings until you obtain the look you want and click OK to confirm.
