Create & modify thread charts


Use Color > Colorway Editor to create new thread charts.

EmbroideryStudio lets you define your own charts. When you create a thread chart, you are creating a store of colors for future use. Select names that will help you remember the charts or help you sort frequently-used charts to the top of the list. Rename or remove charts at any time.

To create a new thread chart...

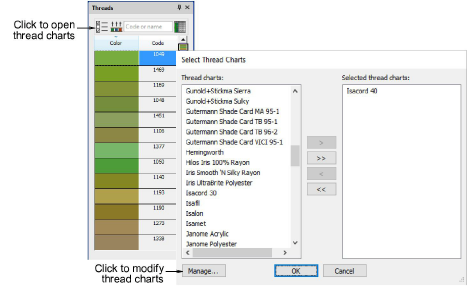

3Select Manage Thread Charts via the Setup menu. Alternatively, click the Select Thread Charts button in the Colorway Editor.

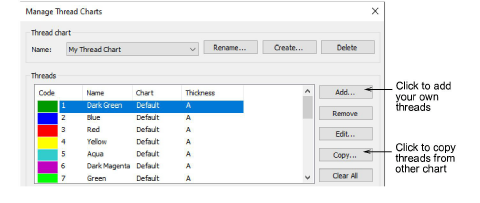

3Click Manage. The Manage Thread Charts dialog opens displaying the current thread chart.




3Click Create. The Create Thread Chart dialog opens.




3Enter a name for the chart and click OK. The new chart is created, ready for you to add colors.




3Click Delete to remove the entire chart.




3Click Rename to change names.




Caution: Be careful when deleting thread charts. If you delete the wrong chart you will need to reinstall EmbroideryStudio to restore it.
