Dispositivo EmbroideryConnect

A separate EmbroideryConnect device is needed for each embroidery machine on the network. Designs can be ‘pushed’ to a named device or ‘pulled’ via barcode reader at each machine.

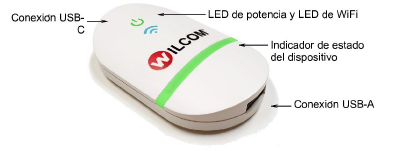

Device features

Device features are summarized below:

Artículo	Descripción
Dispositivo EmbroideryConnect	The device itself is small and compact. It can plug directly into an embroidery machine USB port or via USB extender cable.
Conexión USB-C	USB-C connection at top to connect device to PC or embroidery machine.
Conexión USB-A	Separate USB-A input port for USB barcode reader.
Indicador de estado del dispositivo	The device displays basic status information. Para más información, vea más adelante.
Power from USB	No separate power supply needed – power is drawn from USB port.

Idea: The dispositivo EC comes with 3M mounting strips to attach it to the target machine.

dispositivo EC states

The dispositivo EC indicates various devices states. The following table explains the color coding…

When…	Status light	Estatus
Attaching device to machine	Solid green	Device is running smoothly so machines can access designs.
Scanning barcode	Flashing orange	Barcode scan failed. Scanned file not found in design queue.
	Flashing purple	Device cannot connect to EmbroideryHub for design request.
Sending design to device	Flashing yellow	Device is unmounted.
	Flashing orange	Sent file already exists on device.
	Flashing red	Error occurred.
