Image viewing options


Use View > Show Bitmaps to show and hide bitmap images. Right-click to set image display options.


Use View > Show Vectors to show and hide vector graphics. Right-click to set image display options.


Use View > Dim Artwork to dim graphic backdrops to show stitches more clearly for digitizing.

You can dim bitmap image backdrops to make it easier to view stitches. You can also show colored vector graphics as outlines only.

To set image viewing options...

3Right-click either the Show Bitmap or Show Vectors icon. The Options > View Graphics dialog opens.

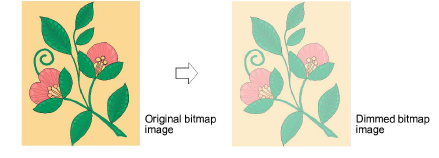

3To dim a bitmap image backdrop, select the Dim Graphics checkbox.

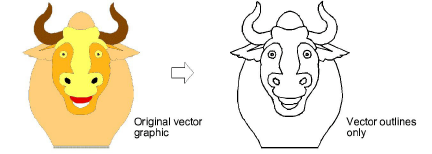

3To view a colored vector graphic as outlines, select the Show Wireframe checkbox.
