EmbroideryStudio provides standard formats for most machines. However, if your machine is different, you may need to customize the machine format settings. For example, if you have different models of the same type of embroidery machine, different functions may require different values.

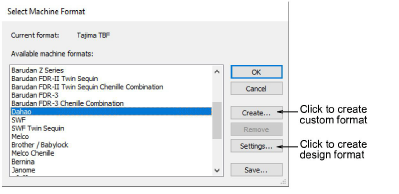

You can create a new machine format based on a standard machine format, and make it available to all designs.

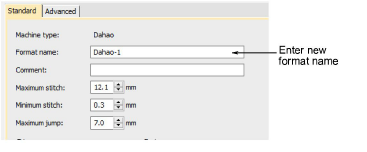

3In the Format Name field, enter a name for the new format – e.g. Melco-1.
3In the Comment field, enter any information that will help you identify the machine format – e.g. No Trim.
3Adjust Standard and Advanced machine format settings as needed.
You can create a custom machine format for use with the current design. You cannot change the Name or Comment fields. The custom machine format is automatically named using the original machine format and design name – e.g. Melco-Design1.
Note: If necessary, you can update the standard machine format itself. However, you should only do this if the original values are no longer used.
