Use Docker > Stitch List to toggle Stitch List display on/off. Use it to display only stitches of a certain length.
|
|
Use Docker > Stitch List to toggle Stitch List display on/off. Use it to display only stitches of a certain length. |
You can apply a filter to the Stitch List so that only stitches of a certain length appear in the list. The main use of this feature is to find stitches which cause production problems, such as short stitches (e.g. < 1.0 mm).
1Open the Stitch List.

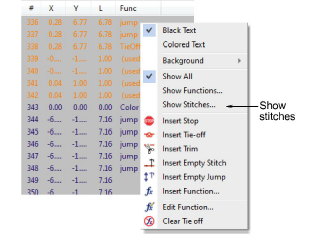

2Right-click a stitch and select Show Stitches from the popup menu. The Show Stitches dialog opens.
3Select the range of stitch lengths you want to show:
|
Option |
Function |
|
Radial |
Corresponds to the actual stitch length. |
|
Axial X,Y |
Corresponds to the horizontal and vertical frame movements. |
4Click OK. Only the selected stitches are displayed in the list.
Tip: To display the text in the associated stitch color, select Colored Text from the popup menu.
5To show all stitches again, right-click in the Stitch List and select Show All from the popup menu.
