Filter stitches by function


Use Docker > Stitch List to toggle Stitch List display on/off. Use it to display stitches associated with specific functions.

You can apply a filter to the Stitch List so that only stitches associated with specific functions appear in the list.

To filter stitches by function...

1Open the Stitch List.

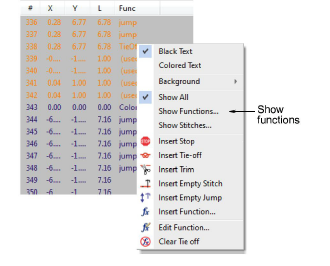

2Right-click a stitch and select Show Functions from the popup menu.




3Select the functions you want to show.

Tip: To select multiple functions, use Ctrl or Shift keys as you click. Click Select All to show all function types.

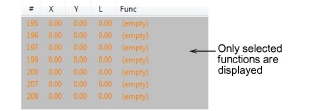

4Click OK. Selected functions are displayed in the list.




Tip: To display the text in the associated stitch color, select Colored Text from the popup menu.

5To show all stitches again, right-click in the Stitch List and select Show All from the popup menu.
