Use Docker > Overview Window to toggle window display on/off. Use it to view a thumbnail of the design.
|
|
Use Docker > Overview Window to toggle window display on/off. Use it to view a thumbnail of the design. |
Use the Overview Window to view a thumbnail of the design. Use it to pan and zoom the design when working at high zoom factors. Set view settings independently to the design window.

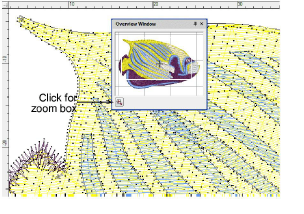

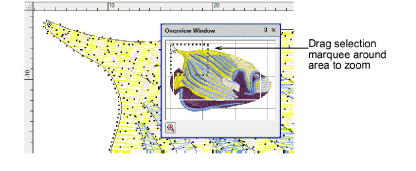

3To zoom in or out, click the Zoom button at the bottom of the window and drag a selection marquee around the area to zoom.

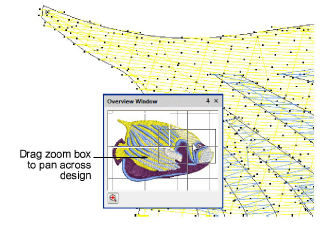

3To pan across the design, click and drag the zoom box.

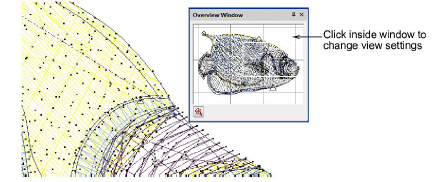

3To change the view settings for the Overview Window, click it to make it the active window.
