Switch to Queue view

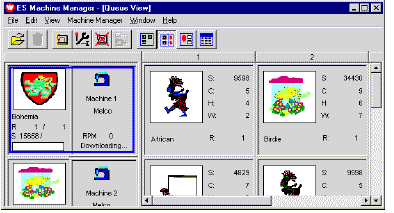

The Queue View window provides a flexible visual environment for managing your design queues. You can scroll through all of your machines and see a thumbnail and brief details for all queued designs. Most designs are sent for stitching from this view.




To switch to Queue view...

1Start Machine Manager. See Running Machine Manager for details.

2Select View > Queue View.

3Use the appropriate methods below:

3To change a design’s position in a queue, drag it to any position in the current queue.

3To stitch a design to a different machine, drag-and-drop it to any position in that machine’s queue.

3To delete a design from a queue, select it and press Delete. You will be asked to confirm the deletion.

3To stitch a copy of the same design in a queue, select the design, press Ctrl + C, then press Ctrl + V to paste the design in the queue.

Alternatively, right-click the design, select Number of Runs, enter the number of runs required in the dialog and click OK.

3To add more designs to the queues, drag-and-drop one or more designs directly from File Explorer onto a Machine Manager queue.

Tip: Drag selected designs from Explorer over the minimized Machine Manager taskbar icon. Machine Manager will automatically maximize and allow you to drop the design/s onto a queue.

Where necessary, you will be prompted to change machine format.
