Digitize circles


Use Input > Circle to draw and digitize ovals or circles.

The Circle tool provides a quick way to digitize filled or unfilled circles.

To digitize a circle...

1Click the Circle icon.

2Select a color from the color palette.

3Select an Outline or Fill stitch type.

4Mark the center point then mark a point on the circumference.

3If you want a perfect circle, press Enter.

3If you want an ellipse, mark a third reference point.

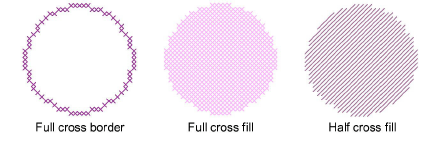

The circle or oval is filled or outlined depending on the stitch type selected.
