Preview design reports

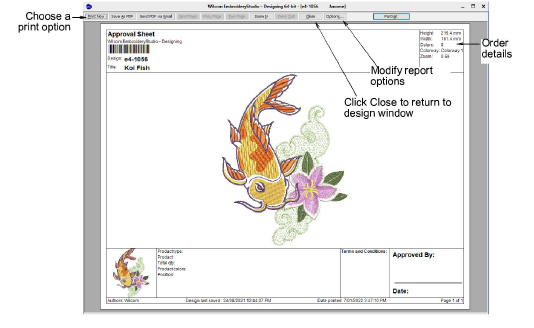

Click Standard > Print Preview to preview the production worksheet on screen.

Approval sheets and production worksheets contain all or some of the design details contained in the Design Information docker. Approval sheets are intended for customers, not production staff. Customers can see what they are ordering and approve accordingly. Production worksheets are intended for production staff. All production-related information, such as bobbin length, design size, garment fabric, etc, is provided.

To preview a design report...

3Click the Print Preview icon.

3To change paper orientation, click Landscape or Portrait. Large designs may be displayed over a number of pages.

3To change included information and set printing/plotting preferences, click Options. Here you can choose the report type – e.g. Approval sheet.

3To print the design, choose an option:

Option	Function
Print Now	Send the design report to your local printer.
Save as PDF	Save the report as a PDF document. You are prompted to save to the hard drive or network location.
Send PDF via Email	Send the report – usually an approval sheet – as a PDF attachment to your local email client.

3To close the preview, click Close.

Related topics...

3Viewing & managing design information

3Printing design reports

3Customizing design reports
